P.A.T.T.I.® QUANTUM CONCRETE Analog

$2,395.00 2,395.00

Available Options

Qty

The PATTI® QUANTUM CONCRETE Portable Adhesion Tester!

"Looking to improve your Adhesion Testing results?"

Read the following White Paper to learn more about our newest Patent-Pending Product (still in development)

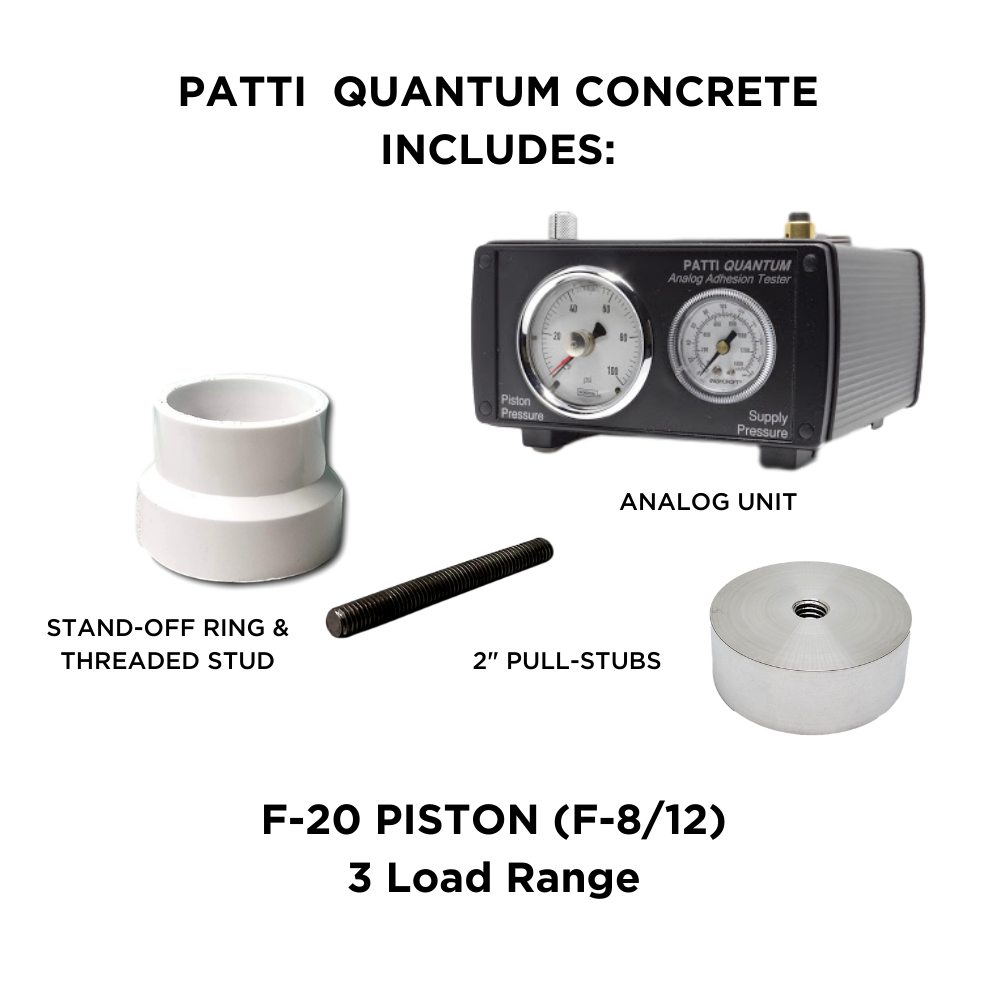

Includes accessories specific to concrete coatings testing, but may also be adapted for coatings on other substrates:

  • Initially released with Analog Gauge (as shown)
  • Large diameter F8/12 (aka F-20) Piston
  • 20 Pull-Stubs 2" diameter

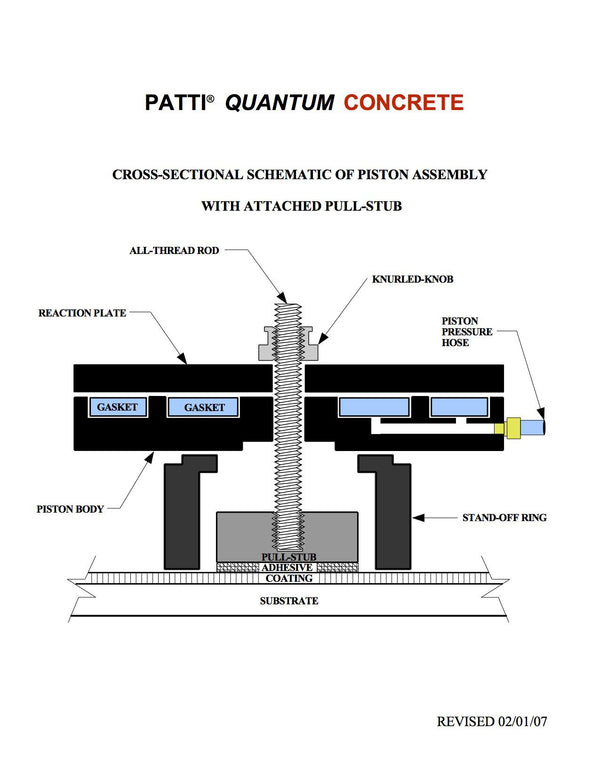

  • Stand-Off Ring for use with larger diameter Pull-Stubs


Considered the most accurate portable coatings adhesion tester available for the last two decades; the PATTI line is now even further enhanced!

PATTI® QUANTUM FEATURES:

  • The same quality you have come to expect from the PATTI
  • The powder-coated box is much more robust than previous PATTI®'s – will maintain its aesthetic value
  • New regulator eliminates the internal pop valve, allowing for use of entire air cartridge
  • New air cartridge capacity is twice that of other PATTI® models
  • Simplified design requires fewer internal parts and reduces the frequency of maintenance and repair
  • With the exception of the new, higher capacity CO2 Cartridge, you can use the same pistons, pull-stubs, and supplies as previous PATTI®'s
  • The reduced number of internal parts makes the PATTI® QUANTUM lighter than other PATTI®'s and more portable than ever


PATTI® APPLICATIONS:

  • The self-aligning PATTI® QUANTUM quantitatively measures the adhesion strength of numerous coatings, including paints, polymers, ceramics, inks, films, adhesives, and thermal or arc-sprayed metals.

  • Laboratory or field use.

  • The PATTI® can also be used to test the strength of adhesives
    under non-room environmental conditions from 32–212°F
    (0–100℃).


EASY TO USE:

  • The PATTI® Quantum uses compressed inert gas to apply a continuous
    tensile load to an aluminum pull-stub which is bonded to the test surface with an adhesive.

  • After the adhesive has cured, the operator attaches the selected piston. Then the operator pushes and holds the "RUN" button. A continuous load is then applied perpendicular to the pull-stub until failure occurs, or until a specified load is reached.

  • The PATTI® can be pressurized with CO2 cartridges to make it portable for field use. In the laboratory, nitrogen or any clean inert gas system providing at least 100 psig (up to 160 psig) can be used.

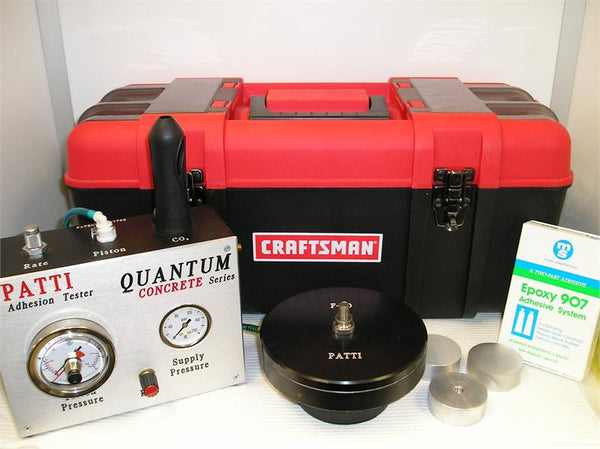

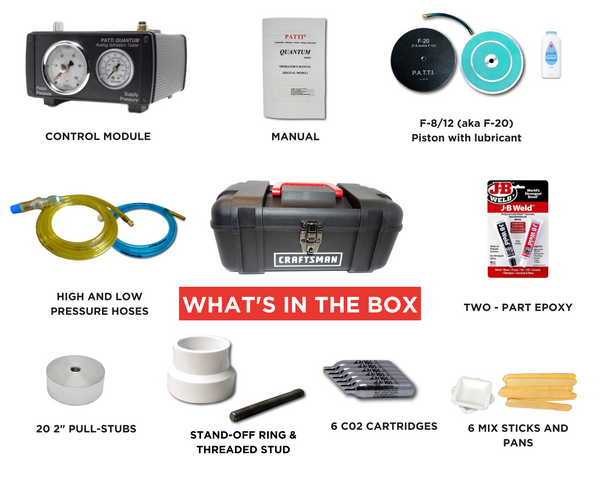

Laboratory/Field Analog PATTI QUANTUM CONCRETE Complete System includes one dual load range piston (F8/12 aka F-20), transport toolbox, accessory kit [(20) 2" Pull-Stubs, Stand-Off Ring, high and low-pressure hoses, epoxy kit, talcum powder, 6 CO2 cartridges] and instruction manual.

All PATTI® Units include a one year warranty.

Still not sure if the PATTI® is right for you? Why not RENT ONE?

MEASURES CONCRETE COATING ADHESION STRENGTH UP TO 1,000 PSI!

MEETS SPECIFICATIONS:

The PATTI® instrument and method conforms to ASTM D-4541, "Pull-Off Strength of Coatings Using Portable Adhesion Testers".

SPECIFICATIONS:

  • Gas Supply: self-contained or external supply, 100psig
  • Weight: About 3.5 pounds
  • Dimensions: 8" (20.3cm) x 3 1/8" (7.9cm) x 6" (15.3cm) (Control Module)
  • Load Range: 1-10,000psi using 1/2" pull-stubs
  • Operating Temperature Range: 50-120 degrees Fahrenheit
  • Certified calibration available at additional fee.
  • Accessory for testing adhesives available
  • All pistons are self-aligning

OPTIONAL ACCESSORIES:

Gas regulator, adhesive test jig and anchor plate, custom-machined pull-stubs.

Laboratory/Field Analog PATTI QUANTUM CONCRETE Complete System includes one dual load range piston (F8/12 aka F-20), transport toolbox, accessory kit [(20) 2" Pull-Stubs, Stand-Off Ring, high and low-pressure hoses, epoxy kit, talcum powder, 6  ⃰CO2 cartridges] and instruction manual.

Due to FAA regulations CO2 cartridges will only be shipped by ground. Cartridges can generally be purchased at bike shops or sporting goods stores.

Add an additional piston in conjunction with your order at a 10% discount to retail prices
All PATTI® Units include a one year warranty.

Still not sure if the PATTI® is right for you? Why not RENT ONE?
