Everything You Need for Fast, Precise Cross Hatch Adhesion Testing
Overview
This complete kit includes all the items required to perform cross hatch adhesion tests on flat surfaces following ASTM D3359 and ISO 2409 standards. It provides a quick and easy method for determining coating adhesion strength and ensures reliable, repeatable results in both lab and field settings.
Includes

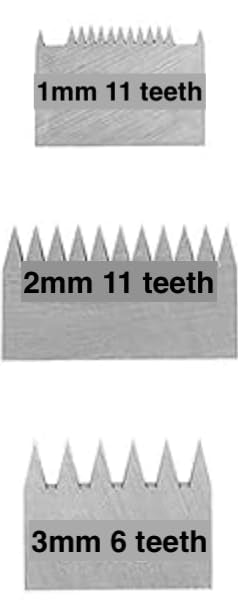

Three precision blades for different applications:
11 teeth with 1 mm spacing
11 teeth with 2 mm spacing
6 teeth with 3 mm spacing
ASTM D3359 / ISO 2409 compliant test tape (58–64 oz/in)

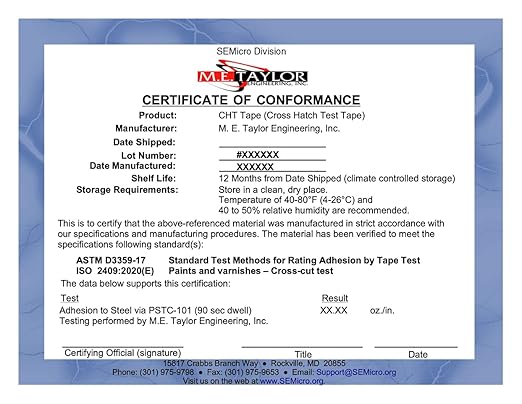

Certificate of Conformance listing the adhesion strength of the included tape batch

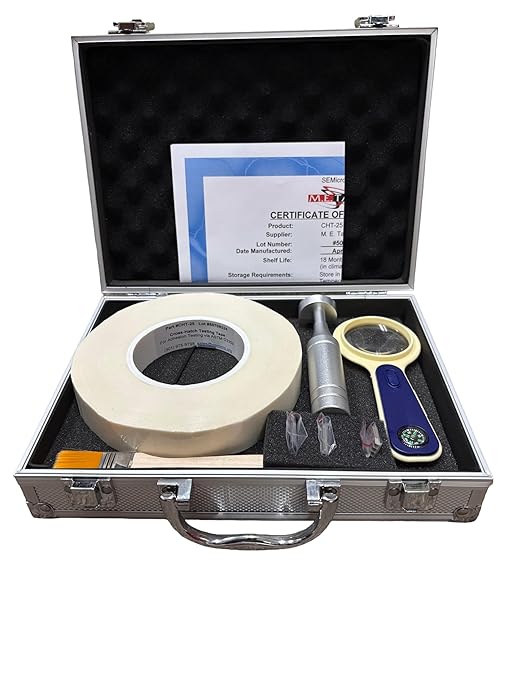

Rugged metallic carrying case for protection and storage

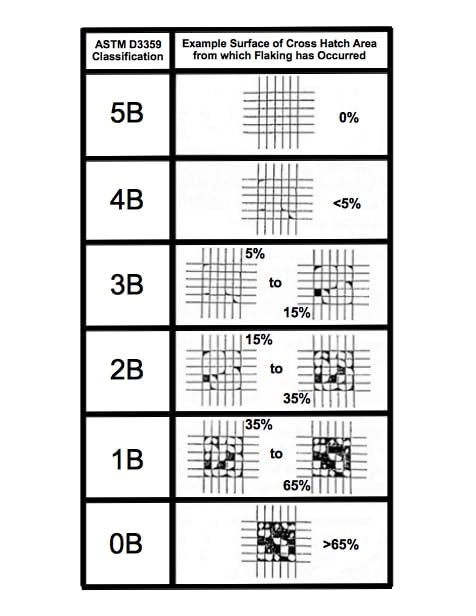

Classification chart for evaluating coating removal
Features
Meets ASTM D3359 and ISO 2409 specifications
Tape tested in our laboratory to verify adhesion strength
Certificate of Conformance included with every kit
Durable metal case keeps components secure and organized
How to Use
Score the coating through to the substrate using the multi-toothed blade.
Apply the included tape over the hatched area.
Remove the tape and inspect how much of the coating was removed.
Compare the test area to the images on the included classification chart to determine the adhesion rating.
Compliance
ASTM D3359
ISO 2409
Specifications
Component
Description
Blade Options
11 teeth – 1 mm / 11 teeth – 2 mm / 6 teeth – 3 mm
